產品展示
PRODUCT

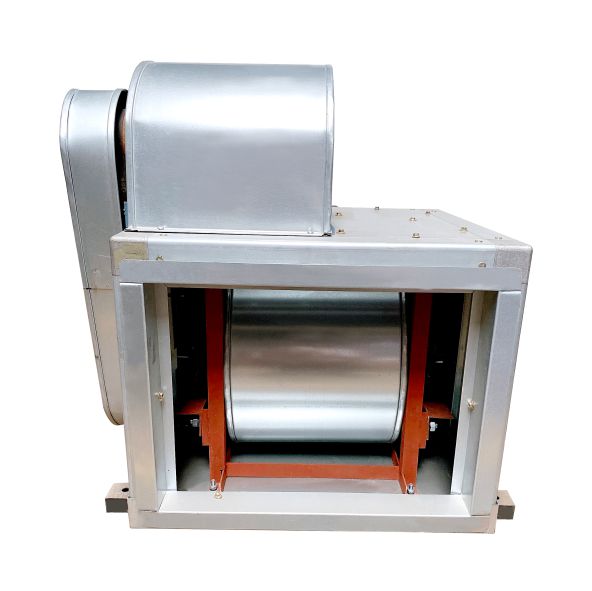

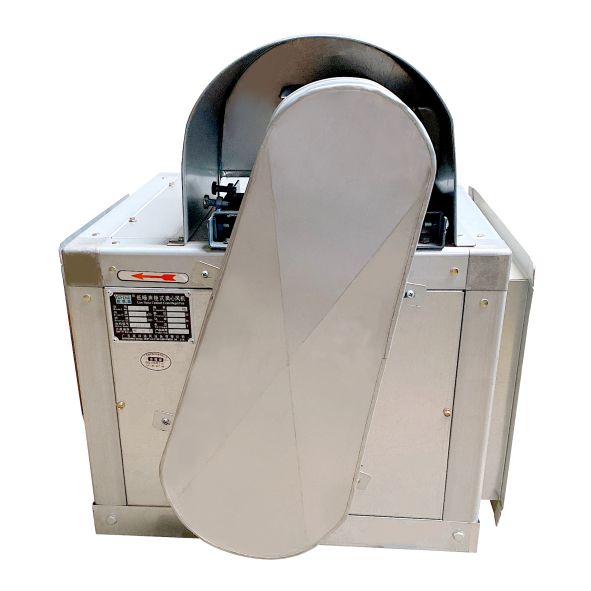

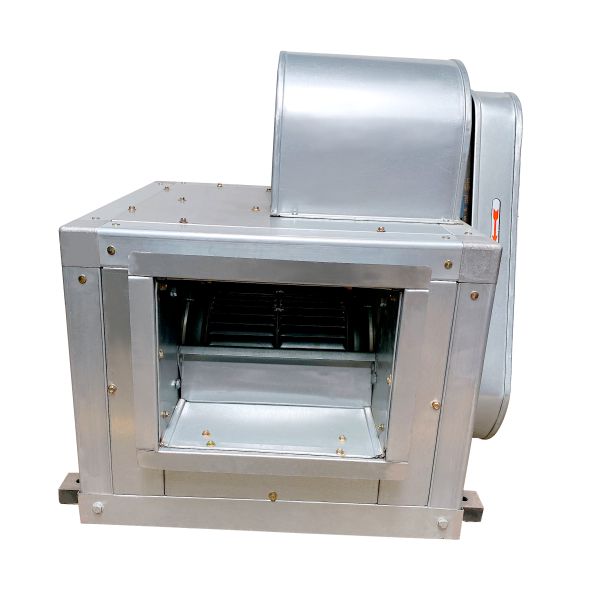

選用前向多翼式離心葉輪制作而成。
風量大、全壓高、噪音低、振動小。
安裝維修方便、外表美觀。
適合高層建筑、地下室、企業車間、酒店等場所的通風換氣于抽煙之用，也可用作空氣處理裝置設備。
型號：12#、15#、18#、20#、25#、17#、30#，共8個
Consist of forward curved multi-blade impeller
Large air volume ,high pressure ,low noise ,beautiful appearance
Easy installation and maintenance ,beautiful appearance
Suitable for ventilation and lampblack extracting in high-rise building ,basement ,workshop ,hotel,etc. Also be used for matching equipment with air processing equipment.
Model no.: 12#、15#、18#、20#、25#、17#、30#，total 8 models
產品詳情
|
型號
Model |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
吸風口 Air intake （mm） |
出風口徑 Air outlet diameter （mm） |
規格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
HTFC普通型價General price of HTFC （RMB） |
HTFC加隔音棉價HTFC plus sound insulation cotton price （RMB） |
葉殼價Leaf shell price （RMB） |
|
12# |
6/4P 1.5/2.2 |
800/1200 |
3771-6344 |
251-154 |
650×530 |
370×270 |
630×760×650 |
|
|
4680 |
5020 |
3400 |
|
5957-9516 |
565-348 |
|
|
|
|
|
4680 |
5020 |
3400 |
|||
|
6/4P 3/4 |
920/1400 |
4337-7295 |
332-204 |
|
|
|
|
|
5680 |
5960 |
3400 |
|
|
6600-111-2 |
769-474 |
|
|
|
|
|
5680 |
5960 |
3400 |
|||
|
15# |
6/4P 3/4 |
700/1050 |
5374-9039 |
266-164 |
690×630 |
450×330 |
770×800×740 |
|
|
7380 |
7560 |
3820 |
|
8061-13559 |
599-370 |
|
|
|
|
|
7380 |
7560 |
3820 |
|||
|
6/4P 4/5 |
800/1200 |
6143-10331 |
348-214 |
|
|
|
|
|
8960 |
9520 |
3820 |
|
|
9213-15497 |
784-483 |
|
|
|
|
|
8960 |
9520 |
3820 |
|||
|
18# |
6/4P 4/5 |
600/900 |
7733-13007 |
284-176 |
890×770 |
560×480 |
900×100×900 |
|
|
8520 |
9040 |
5100 |
|
11598-19509 |
637-394 |
|
|
|
|
|
8520 |
9040 |
5100 |
|||
|
6/4P 6.5/8 |
700/1050 |
9021-15174 |
385-239 |
|
|
|
|
|
10860 |
12100 |
5100 |
|
|
13531-22791 |
867-538 |
|
|
|
|
|
10860 |
12100 |
5100 |
|||
|
20# |
6/4P 6.5/8 |
600/900 |
9852-16573 |
331-206 |
990×880 |
610×540 |
1000×1100×1000 |
|
|
11640 |
12140 |
6600 |
|
14779-24860 |
746-463 |
|
|
|
|
|
11640 |
12140 |
6600 |
|||
|
22# |
6/4P 6.5/8 |
530/720 |
12389-20837 |
329-204 |
1040×970 |
660×610 |
1040×1150×1080 |
|
|
12540 |
13880 |
7880 |
|
18701-31453 |
750-466 |
|
|
|
|
|
12540 |
13880 |
7880 |
|||
|
6/4P 9/11 |
600/900 |
14026-23590 |
422-262 |
|
|
|
|
|
13940 |
14780 |
7880 |
|
|
21039-35385 |
949-589 |
|
|
|
|
|
13940 |
14780 |
7880 |
|||
|
25# |
6/4P 11/14 |
480/720 |
15596-26230 |
301-186 |
1240×1080 |
750×650 |
1200×1350×1200 |
|
|
16800 |
18480 |
9360 |
|
23394-39345 |
678-419 |
|
|
|
|
|
16800 |
18480 |
9360 |
|||
|
6/4P 18.5/22 |
530/800 |
37000-28900 |
1050-1190 |
|
|
|
|
|
20320 |
20960 |
9360 |
|
|
34800-19300 |
460-530 |
|
|
|
|
|
20320 |
20960 |
9360 |
|||
|
28# |
6/4P 18.5/22 |
480/720 |
21041-34268 |
388-240 |
1380×1220 |
810×740 |
1250×1500×1340 |
|
|
22020 |
23040 |
11920 |
|
30562-51403 |
875-542 |
|
|
|
|
|
22020 |
23040 |
11920 |
|||
|
6/4P 22/28 |
520/800 |
47900-34600 |
960-1160 |
|
|
|
|
|
30860 |
31700 |
13400 |
|
|
32200-23200 |
430-530 |
|
|
|
|
|
30860 |
31700 |
13400 |
|||
|
30# |
6/4P 22/28 |
500/650 |
26882-45213 |
508-532 |
1490×1260 |
900×780 |
1300×1600×1370 |
|
|
33100 |
31700 |
13400 |
|
34947-58777 |
593-366 |
|
|
|
|
|
33100 |
31700 |
13400 |
|||
|
6/4P 30/37 |
540/720 |
29032-48829 |
1350-1560 |
|
|
|
|
|
35400 |
37740 |
13400 |
|
|
38710-68106 |
1055-652 |
|
|
|
|
|
35400 |
37740 |
13400 |
