產品展示
PRODUCT
型號：2A-7A

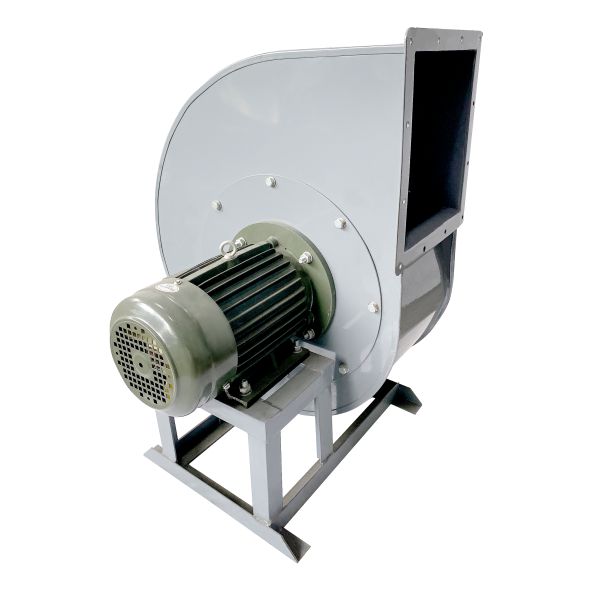

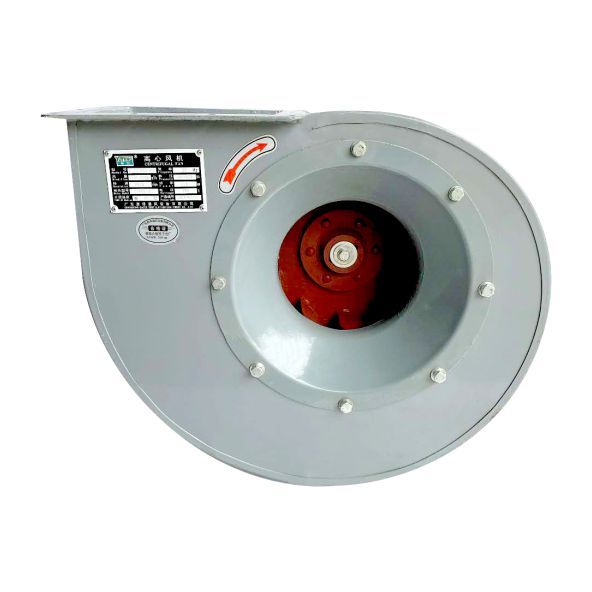

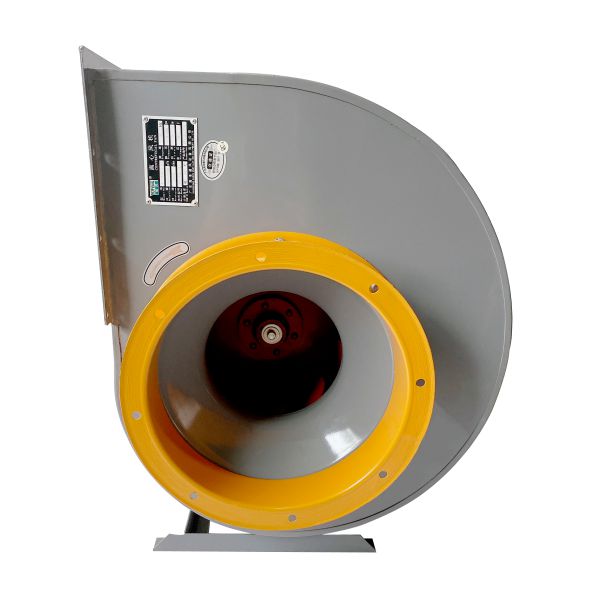

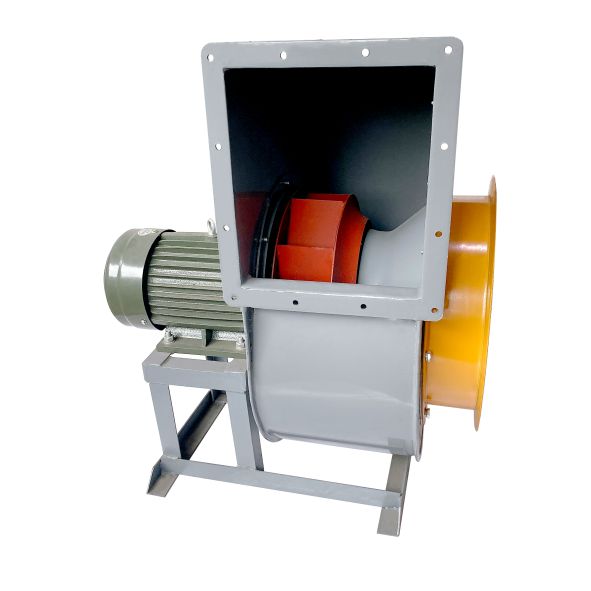

Medium pressure centrifugal fan with largeair volume ,the impeller is consist of backwardblades ,cone curved front plate and flat rear plate High efficiency ,low noise ,strong and durable Used for air conveying of air conditioning system in the factory ,hotels and restaurant ,air exhausting cooling and dust extracting in basement ,cinema ,meeting room ,gym ,etc
Model no.:2A-7A
產品詳情
|
型號
Model |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
規格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
入風口尺寸Air inlet size |
出風口尺寸 Air outlet size |
整機單價 Unit price of complete machine （RMB） |
加腳單價 Extra unit price （RMB） |
風輪價 Wind turbine price （RMB） |
|
2A |
0.55 |
2800 |
878-1600 |
285-363 |
420x390x369 |
19.2 |
2.5 |
Φ200 |
170x130 |
760 |
860 |
120 |
|
2.5A |
1.1 |
2800 |
1020-1911 |
850-450 |
425x 465x410 |
23 |
2.8 |
φ200 |
198x145 |
820 |
960 |
140 |
|
2.8A |
0.75 |
1450 |
565-1178 |
294-152 |
470x465x480 |
36 |
4.4 |
Φ280 |
195x220 |
1060 |
1300 |
180 |
|
1.5 |
2900 |
1131-2356 |
994-606 |
38 |
1100 |
1388 |
|
|||||
|
3.2A |
2.2 |
2900 |
1688-3517 |
1300-792 |
560x525x500 |
45 |
5.5 |
Φ320 |
250x230 |
1360 |
1660 |
240 |
|
1.1 |
1450 |
844-1758 |
324-198 |
40 |
1260 |
1560 |
|
|||||
|
3.6A |
3 |
2900 |
2664-5268 |
1578-989 |
605x580x600 |
60 |
6.9 |
Φ360 |
260x288 |
1660 |
1980 |
400 |
|
1.1 |
1450 |
1332-2634 |
393-247 |
605x580x600 |
50 |
1360 |
1680 |
|
||||
|
4A |
5.5 |
2900 |
4012-7419 |
3014-1320 |
710x650x720 |
97 |
12.6 |
Φ400 |
280x320 |
2900 |
3260 |
460 |
|
1.1 |
1450 |
2856-5281 |
364-416 |
|
70 |
1660 |
2020 |
|
||||
|
4.5A |
7.5 |
2900 |
5712-10562 |
2554-1673 |
740x682x800 |
111 |
14 |
Φ450 |
305x360 |
3260 |
3660 |
560 |
|
1.1 |
1450 |
2856-5281 |
634-416 |
|
81 |
1900 |
2296 |
|
||||
|
5A |
15 |
2900 |
7728-15455 |
3187-2019 |
805x810x930 |
181 |
18 |
Φ500 |
400x350 |
5060 |
5560 |
620 |
|
2.2 |
1450 |
3864-7728 |
790-502 |
715x780x910 |
87 |
2600 |
3060 |
|
||||
|
5.6A |
3 |
1400 |
5169-12736 |
1617-870 |
805x810x930 |
98 |
22 |
φ560 |
400x450 |
3400 |
3800 |
720 |
|
6A |
4 |
1450 |
6677-13353 |
1139-724 |
815x900x1050 |
135 |
23 |
Φ600 |
410x480 |
3760 |
4320 |
860 |
|
1.5 |
960 |
4420-8841 |
498-317 |
|
110 |
3360 |
3900 |
|
||||
|
6.5A |
7.5 |
1450 |
8760-17620 |
1330-886 |
850x1000x1050 |
158 |
28 |
Φ650 |
580x460 |
4400 |
5000 |
1210 |
|
7A |
11 |
1450 |
10602-21204 |
1550-984 |
1080x1300x1100 |
235 |
30 |
Φ700 |
555x490 |
6400 |
7500 |
1440 |
6A~7A加出風口120元，加清潔門160元。
2)4-72系列采用B35電機，使用可調360度電機座，是采用B3電機。
