產(chǎn)品展示
PRODUCT

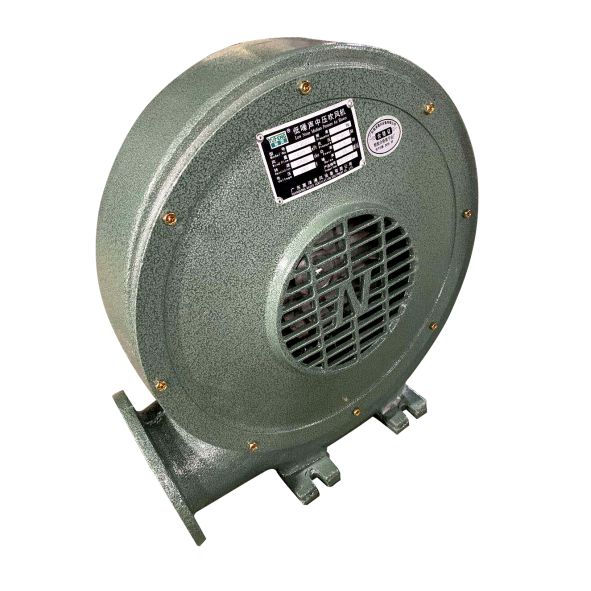

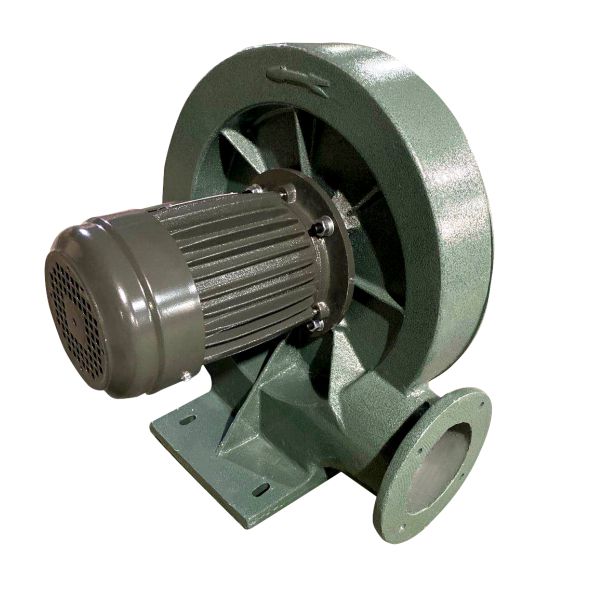

離心式結構，有鋁合金及冷扎板沖壓兩種外殼及葉輪 ；流量大、噪聲低
廣泛用于冶煉，柴油爐配套廚房設備，塑料制品機械要素加壓鼓氣作用
使用場所不含易爆無腐蝕性氣體，氣體溫度不得超過80°C以上使用
10重型號
Centrifugal type structure ,has two kinds of materials for materials for housing and
impeller :aluminum alloy and cold-cooling steel
Large air volume ,low noise
Widely used in smelting or matching with oil melting furnace ,kitchen
equipment ,inflation and pressuring facility
Suitable to transmit the air with the temperature below 80°C in the
environment where has not flammable,explosive and caustic air
10 models
產(chǎn)品詳情
|
型號
Model |
電壓
Voltage |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
規(guī)格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
入風口尺寸Air inlet size |
出風口尺寸 Air outlet size |
鋁殼單價Unit price of aluminum shell (RMB) |
鋁風輪價Price of aluminum wind wheel （RMB） |
|
YYF6312 |
220/380 |
0.18 |
2900 |
420 |
1100 |
320x180x380 |
6 |
0.6 |
Φ120 |
Φ120 |
440 |
80 |
|
YYF6322 |
220/380 |
0.25 |
2900 |
480 |
1200 |
320x180x380 |
7 |
0.6 |
Φ120 |
Φ120 |
460 |
|
|
YYF7112 |
220/380 |
0.37 |
2900 |
720 |
1880 |
410x240x450 |
10 |
1 |
Φ130 |
Φ120 |
600 |
90 |
|
YYF7122 |
220/380 |
0.55 |
2900 |
1140 |
1980 |
410x240x450 |
10 |
1 |
Φ130 |
Φ135 |
620 |
|
|
YYF8012 |
220/380 |
0.75 |
2900 |
1320 |
2000 |
420x240x450 |
13 |
1.2 |
Φ130 |
Φ120 |
860 |
160 |
|
YYF8022 |
220/380 |
0.9 |
2900 |
1380 |
2140 |
420x240x450 |
13 |
1.2 |
Φ120 |
Φ120 |
880 |
|
|
YYF8032 |
220/380 |
1.1 |
2900 |
1500 |
2400 |
420x240x450 |
12 |
1.2 |
Φ120 |
Φ120 |
960 |
180 |
|
YYF9011 |
380 |
1.5 |
2900 |
1600 |
2500 |
450x400x470 |
27 |
1.5 |
Φ120 |
Φ160 |
1480 |
240 |
|
YYF9022 |
320 |
1.5 |
2900 |
1800 |
2780 |
475x380x510 |
30 |
2.4 |
Φ200 |
Φ180 |
1760 |
260 |
|
YYF9022 |
220 |
1.5 |
2900 |
1800 |
2780 |
475x380x510 |
30 |
2.4 |
Φ200 |
Φ180 |
1500 |
260 |
|
YYF9032 |
320 |
2.2 |
2900 |
2000 |
2960 |
470x400x510 |
23 |
2.7 |
Φ200 |
Φ180 |
1860 |
270 |
|
YYF9032 |
220 |
2.2 |
2900 |
2000 |
2960 |
470x400x510 |
23 |
2.7 |
Φ200 |
Φ180 |
1600 |
270 |
|
YYF10012 |
380 |
3 |
2900 |
2300 |
3050 |
530x450x610 |
56 |
6.6 |
Φ200 |
Φ200 |
2200 |
270 |
|
YYF10022 |
380 |
3 |
2900 |
2600 |
3260 |
530x450x610 |
60 |
6.6 |
Φ200 |
Φ200 |
2800 |
520 |
|
YYF11212 |
380 |
4 |
2900 |
2850 |
3450 |
550x500x600 |
73 |
7 |
Φ200 |
Φ200 |
3200 |
540 |
2）180W-900W中壓風機采用紙箱包裝，1.5KW-4KW采用木箱包裝；加鐵殼風機須要加鋁葉增加6元/個。
